OEM waterproof Outdoor Online UPS 1~10KVA Suppliers, Factory

1 / 3

OEM waterproof Outdoor Online UPS 1~10KVA Suppliers, Factory

Model: HQ11 series 1-10KVA, IP55, air-conditioner options, -40ÂºC~55ÂºC

The REO HQ11 series is a rugged outdoor UPS designed for wireless microcell base stations in harsh environments. This all-in-one, high-performance online power system operates reliably in extreme temperatures (-40Â°C to +50Â°C), dusty conditions, moisture, heavy rain, corrosive settings, and areas with unstable grid power - ideal for urban corners, remote roads, and mountainous regions.

Send Inquiry

Product Description

★

Key Features

✔ High-frequency online double conversion

✔ Protection Level IP55

✔ Optional air conditioner for high temperature areas

✔ Waterproof and filtration dust inlet

✔ High temperature resistant and anti-cold

✔ Active PFC, input PF > 0.99

✔ Wide input voltage: 90V-300V

✔ Wide input frequency: 40-70Hz

✔ Cold start capability

✔ Sun protection, heat insulation, roof ventilation

✔ Frequency conversion: 50Hz/60Hz output

✔ Robust design: FR4 PCB, optimized cooling

✔ Support CVCF operation for sensitive devices

📋

Specification

Model	HQ1101	HQ1102	HQ1103	HQ1106	HQ1110
Capacity	1KVA/900W	2KVA/1800W	3KVA/2700W	6KVA/5400W	10KVA/9000W
Phase	Single phase in and Single phase out
INPUT
Range voltage	220/230/240VAC
Voltage range	90~300VAC
Frequency Range	40Hz~70Hz
Power factor	≥0.99
OUTPUT
Voltage Precision	±1%
Power factor	0.9
Transfer time	0ms (AC to DC)
Battery Capacity	Internal Lead Acid Battery 12VDC 100AH x 4PCS			Internal Lead Acid Battery 12VDC 100AH x 16 or 20PCS
WORK ENVIRONMENT
Temperature	-40ºC~55ºC (with AC) / -10ºC~40ºC (without AC)
Protection level	IP55

📸

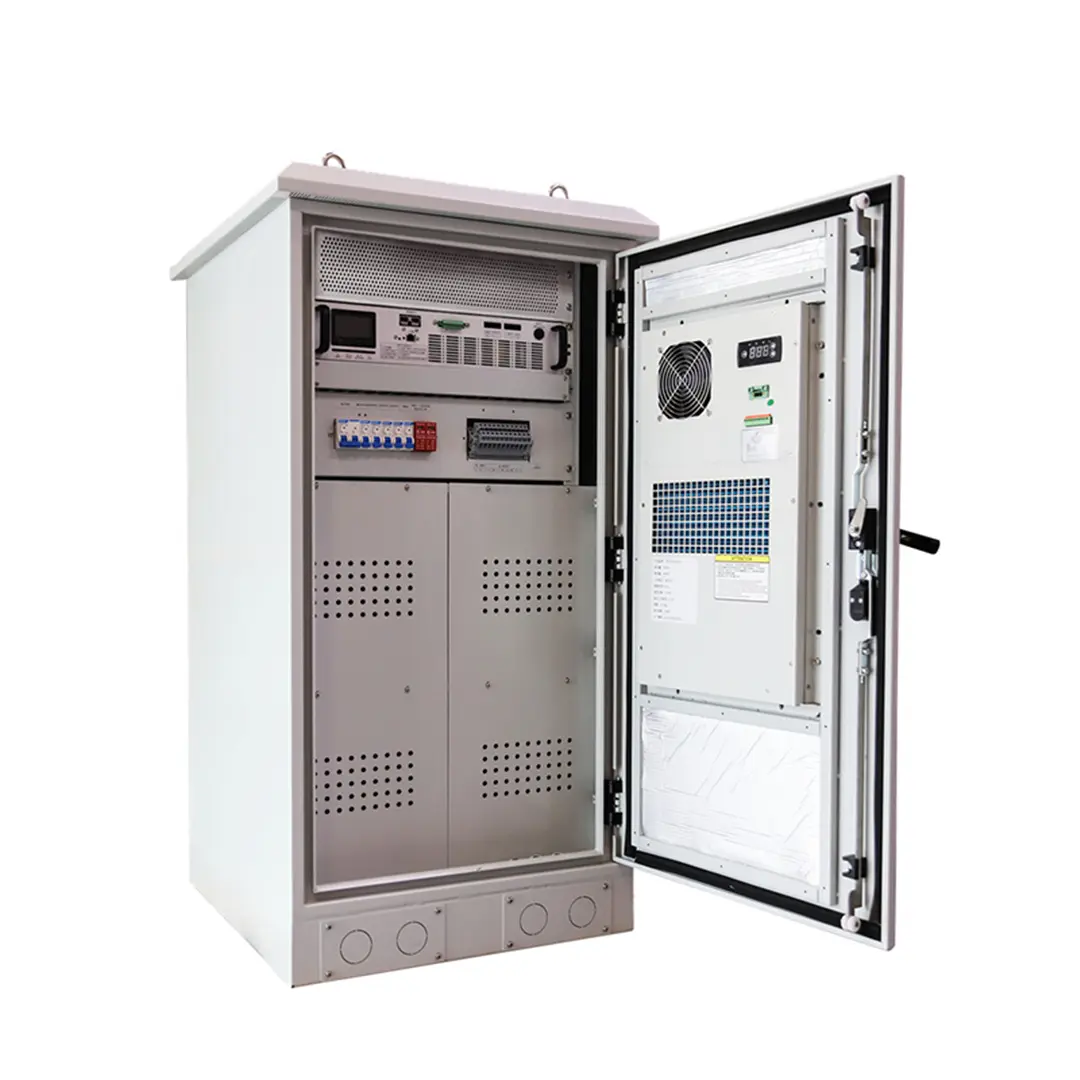

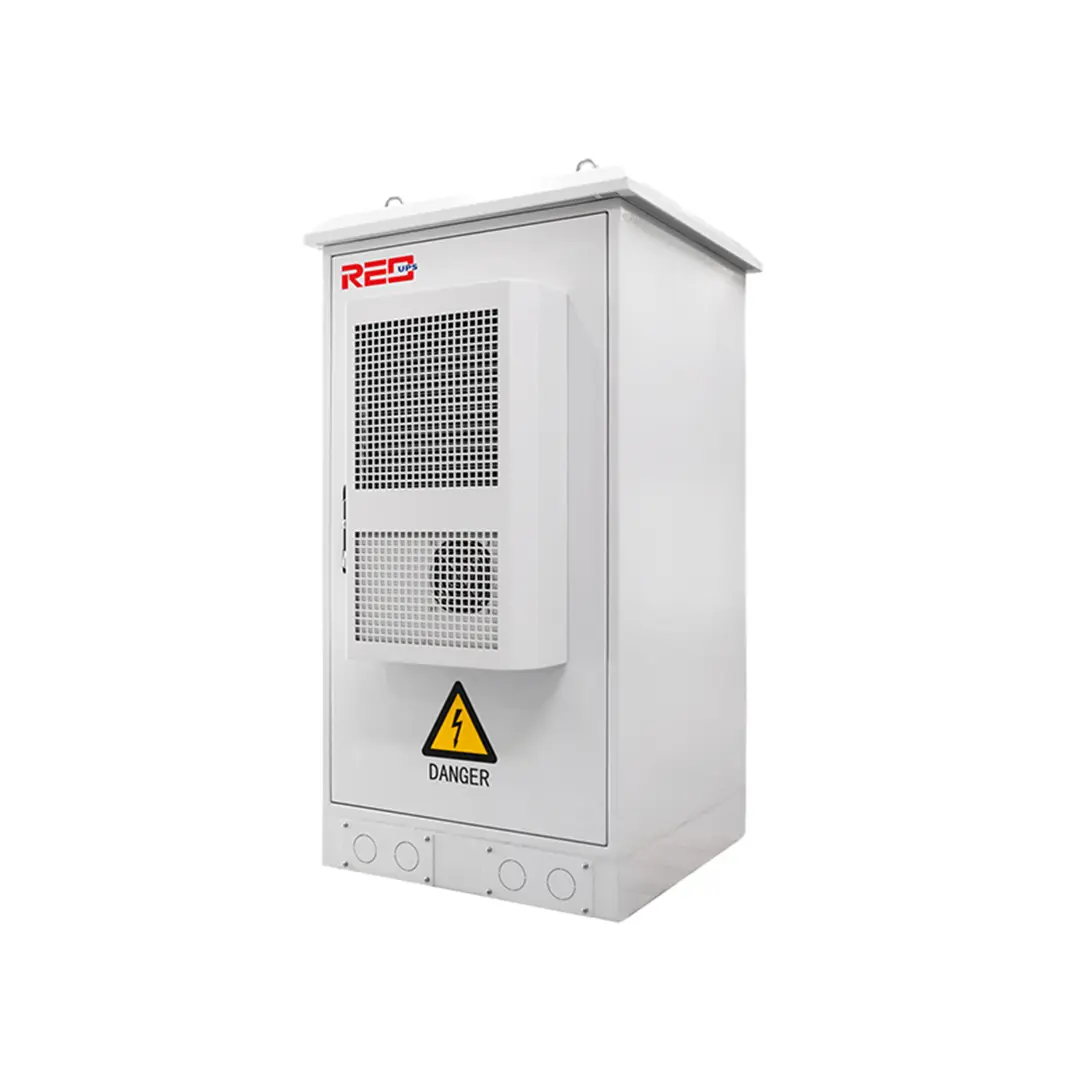

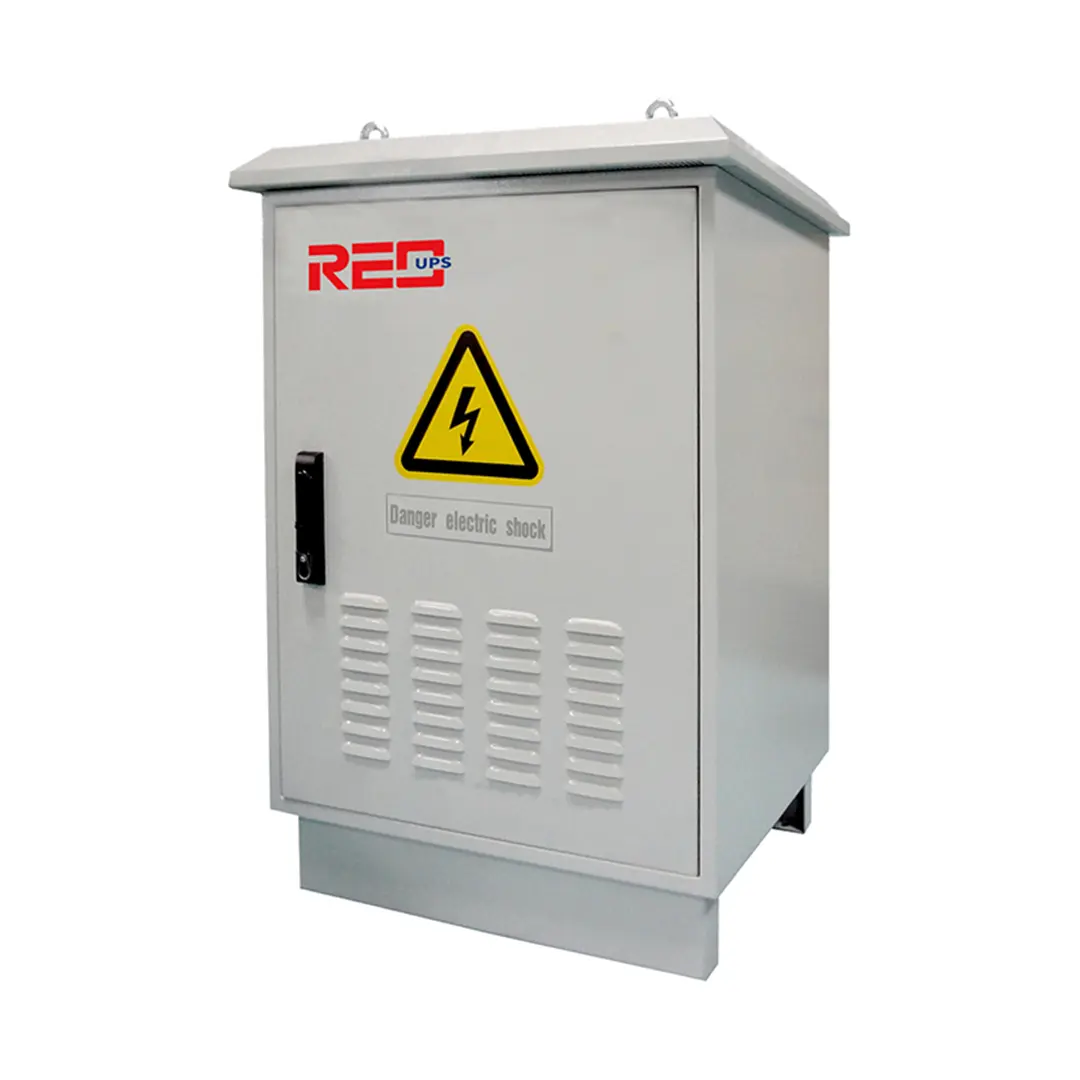

Production Images

📦

Product Packaging

❓

Frequently Asked Questions

1. What is the input voltage range for your UPS systems?

Our UPS systems support a wide input voltage range of 90~300V for 220V models, ensuring stability during voltage fluctuations.

2. Can the UPS be used with a generator?

Yes, our UPS systems are compatible with most generators. It is recommended to verify the generator's output stability for optimal performance.

3. What is the typical battery life of the UPS units?

Typical battery life ranges from 3 to 5 years, depending on the operating environment and frequency of usage.

4. How long does the UPS provide backup power?

Backup time depends on the specific model and load. Standard units provide several minutes of backup, while long-run models with external batteries can support several hours.

5. Is this UPS suitable for outdoor use?

Yes, the HQ11 series is specifically designed for outdoor environments with an IP55 protection level and optional air conditioning.

6. What kinds of payment methods do you accept?

Usually, we require a 30% deposit in advance and the remaining 70% balance before shipment.
