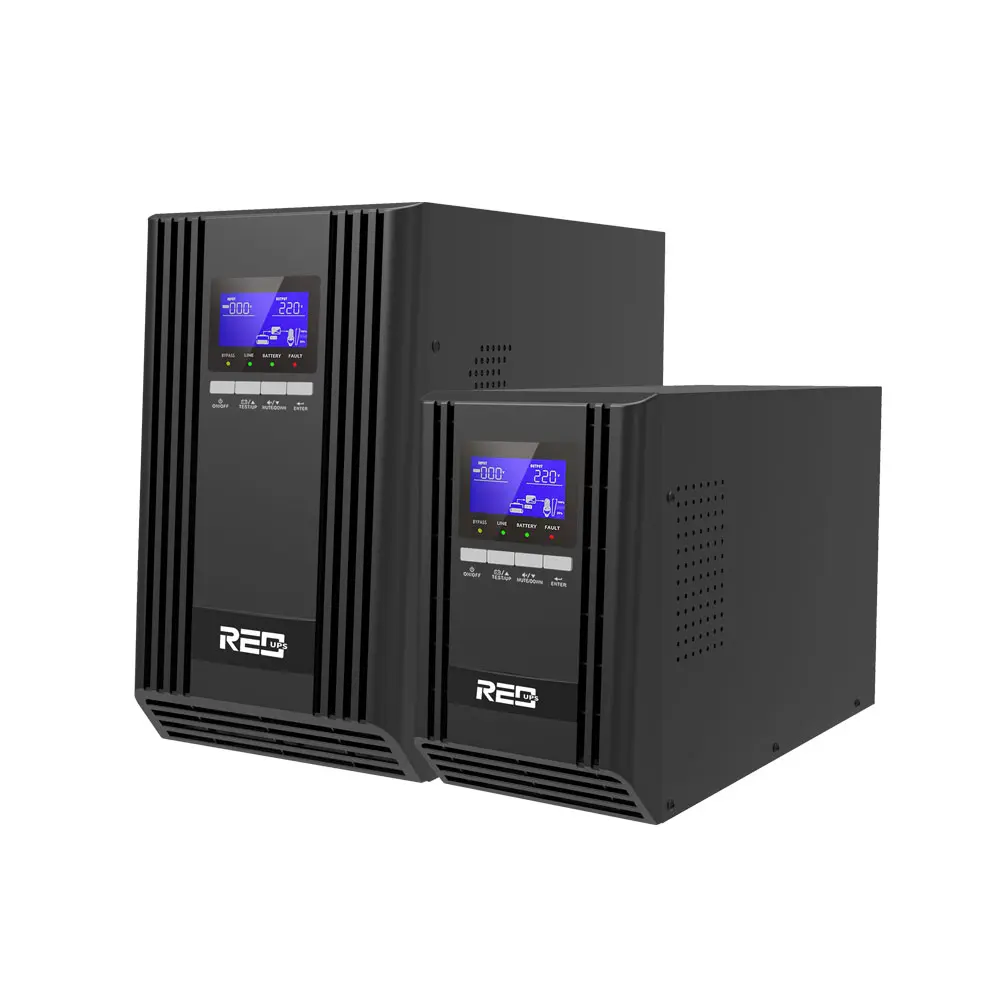

ODM 220V High Frequency Online UPS 1-3KVA Supplier, Factory
Model: Maxwin series 1-3KVA (1-1Phase)
REO UPS manufacturer Maxwin series of 1K -3KVA with 220V input and 220V output online double conversion UPS, provides continuous power backup, protecting devices from outages, surges, and fluctuations. Ideal for critical equipment like servers, it ensures seamless operation. With high reliability, advanced safety features, and stable performance, it safeguards sensitive electronics, making it a trusted choice for both home and office use.
✓Supports laser printers & ultrasound systems (custom)
✓Multi-communication: RS232, USB, RS485, SNMP
✓Robust design: FR4 PCB & Conformal coating
Specifications
Accept Deeply Customized Products
Model
Maxwin 1K
Maxwin 1KL
Maxwin 2K
Maxwin 2KL
Maxwin 3K
Maxwin 3KL
Capacity
1KVA/1KW
2KVA/2KW
3KVA/3KW
AC INPUT
Rated Voltage
208/220/230/240VAC
Voltage Range
90~300VAC
Input Power Factor
≥0.99
AC OUTPUT
Output Voltage
208/220/230/240VAC
Waveform
Pure sine wave
Overload Capacity
1Min@105%~125%; 30Sec.@125%~150%; 0.5Sec.@>150%
BATTERY & CHARGER
Rated Battery Voltage
24VDC (Int)
36VDC (Ext)
48VDC (Int)
72VDC (Ext)
72VDC (Int)
72VDC (Ext)
Charging Current
Standard: 1A ; Long backup model: 4A
• Product specifications are subject to change without prior notice
• Ambient temperature > 30°C, output power factor is 0.9
• Model with "L" means long backup time model, without "L" means standard model
Production Images
Production and shipment - 01
Production and shipment - 02
Production and shipment - 03
Production and shipment - 04
Production and shipment - 05
Production and shipment - 06
Product Packaging
Frequently Asked Questions
1. What is the maximum load capacity of your UPS?
The maximum load capacity varies by model, up to 600KVA/unit, parallel up to 1500KVA.
2. Do you offer extended warranty options?
Yes, extended warranty options are available upon request.
3. How do I calculate the required UPS capacity for my equipment?
You can calculate the required capacity by summing the power consumption of all connected devices and adding a safety margin.
4. Can the UPS be used with medical equipment?
Yes, certain models are suitable for medical equipment. Please consult with our sales team for more specific technical details.
5. Do you offer custom configurations?
Yes, we offer custom configurations for bulk orders or specialized projects.
6. What is the response time of your UPS during a power outage?
The response time is typically less than 10 milliseconds. This time period ensures the normal operation of the equipment without interruption.
