ODM 110V Lithium-Ion Online UPS 1-3KVA 48V Supplier, Suppliers

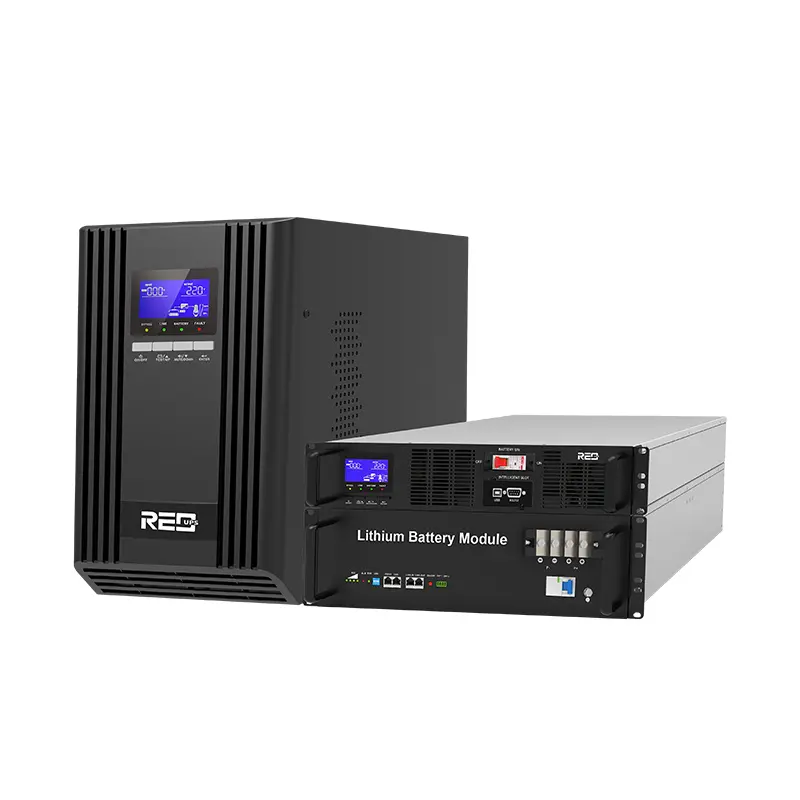

Model: Nova LV series 1-3KVA (1-1Phase)

REO 110V the Nova LV series 1-3KVA high frequency lithium-ion online UPS support to work with lithium-ion batteries. DSP technology with output and input 110/115/120/127V. UPS with BMS and surely communicate with its lithium-ion battery pack. It provides clean, safe, and reliable power supply for the critical load such as data centers, IT networks, telecommunications systems, automation control systems.

Send Inquiry

Product Description

Key Features

✓ High-frequency online double conversion

✓ DSP-controlled and support to work with lithium batteries

✓ Long battery lifecycle, more than 2000

✓ Wide input voltage: 90V-300V; Wide input frequency: 40-70Hz

✓ Active PFC, input PF > 0.99

✓ Generator-compatible

✓ Cold start capability; ECO mode

✓ Optional Remote On/Off (ROO)

✓ Auto-sensing 50Hz/60Hz

✓ Frequency conversion: 50Hz input / 60Hz output

✓ Li-ion battery provide up to 3x backup time

✓ Dry contact interface for BMS dominant control

✓ MODBUS (RS485) interface with BMS for precise data

✓ 4-state Li-ion Battery Charger (CC, CV, Floating, Turn-off)

✓ Supports laser printers & ultrasound systems

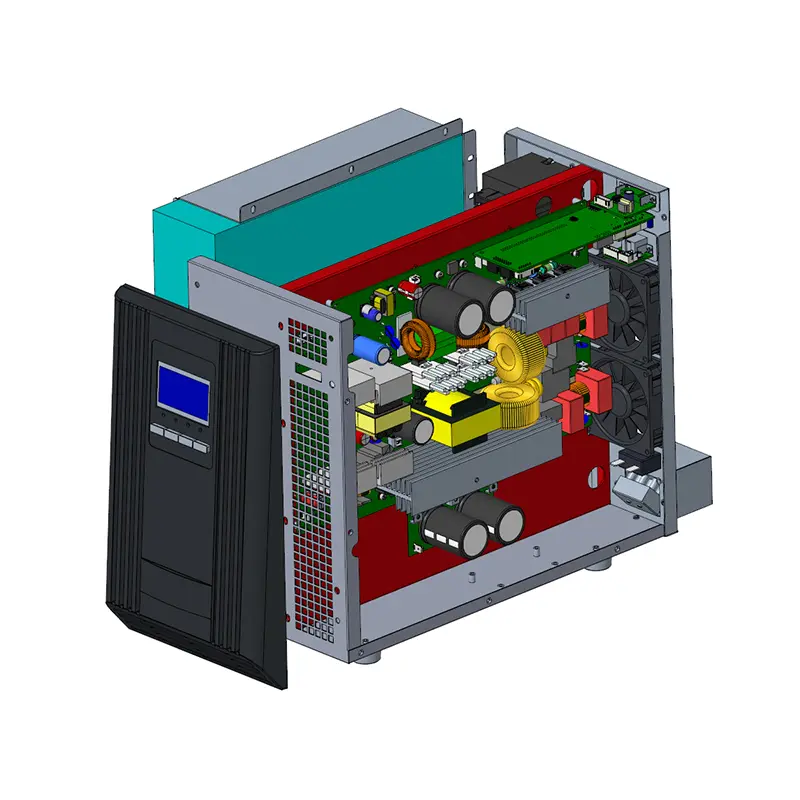

✓ Robust design: FR4 PCB, optimized cooling, conformal coating

Technical Specifications

Accept Deeply Customized Products
Tower Model	Nova LV 1K-Li	Nova LV 1KL-Li	Nova LV 2K-Li	Nova LV 2KL-Li	Nova LV 3K-Li	Nova LV 3KL-Li
Rack Model	Nova LV 1KR-Li	Nova LV 1KRL-Li	Nova LV 2KR-Li	Nova LV 2KRL-Li	Nova LV 3KR-Li	Nova LV 3KRL-Li
Capacity	1KVA/1KW		2KVA/2KW		3KVA/3KW
AC INPUT
Rated Voltage	110/115/120/127VAC
Voltage Range	Line-Neutral: 60~145VAC
Frequency Range	40Hz~70Hz
AC OUTPUT
Output Voltage	110/115/120/127VAC
Power Factor	1.0
Overload Capability	105%~130% @ 60s; 130%~150% @ 10s
BATTERY & CHARGER
Battery Type	LiFePO4 (16 cells)
Backup Time (Full Load)	>30mins	External	>20mins	External	>20mins	External
Charging Current	Standard: 4A; Long Backup: 4A-12A (Optional)
PHYSICAL DATA
Tower Size (WxDxH)	190x442x323 mm / 190x380x323 mm

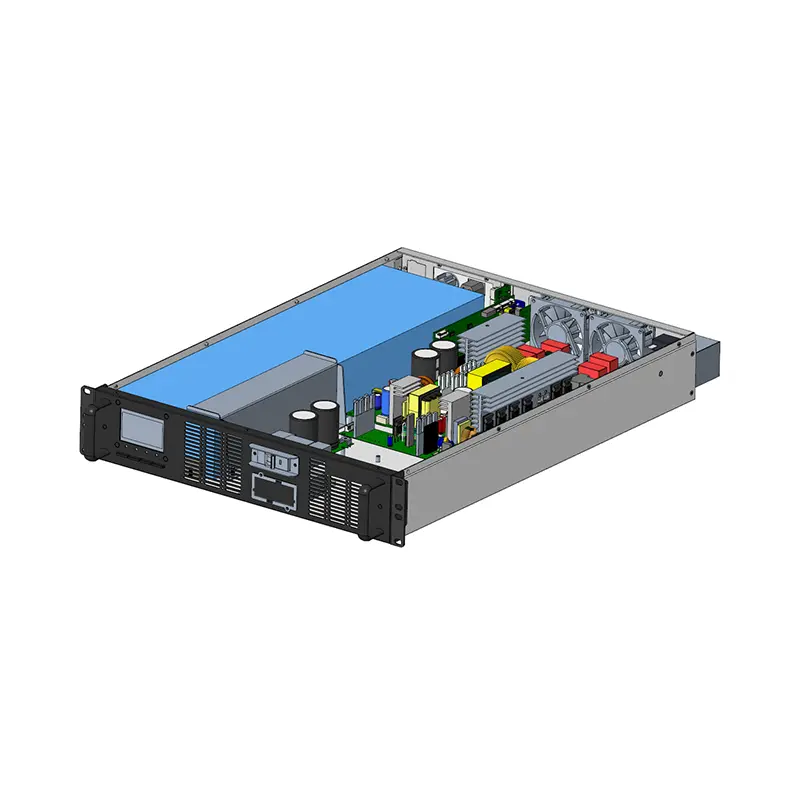

Rack Size (WxDxH)	440x400/500/612x88 mm (2U)

* Product specifications are subject to change without notice. Ambient temperature >30°C, output power factor is 0.9. "L" models indicate long backup time.
