ODM 220V High Frequency Online UPS 6-10KVA Supplier, Factories

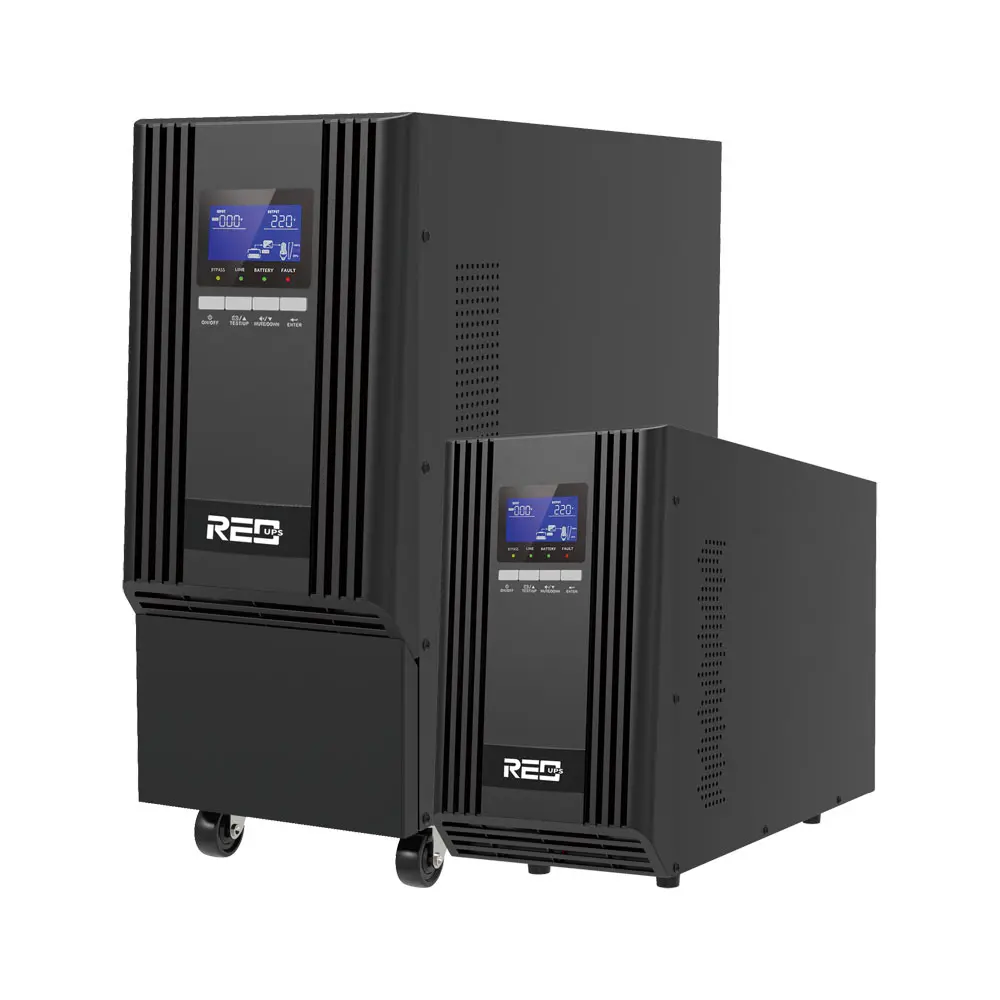

Model: Maxwin series 6-10KVA (1-1Phase)

REO power Maxwin series of 6KVA and 10KVA online UPS system, which adopts three-level inverter technology and has an efficiency of up to 93%. They provide continuous power protection, ensuring seamless operation during outages. They convert AC to DC and back to AC, delivering clean, stable power. Ideal for critical equipment like servers and medical devices, they offer high reliability, safety, and advanced features like three-level inverter technology for efficient performance.

Send Inquiry

Product Description

Key Features

✔ High frequency on-line double conversion

✔ DSP (Digital signal processors) control

✔ Active input power factor correction >0.99

✔ Three level inverter technology, lower harmonic, higher efficiency

✔ Wide input voltage range (90V~300V) and frequency (40~70Hz)

✔ Generator compatible & Cold start function

✔ Economic operation mode (ECO)

✔ 50Hz/60Hz Frequency auto sensing

✔ Frequency converter mode: 50Hz/60Hz conversion

✔ Laser printer and ultrasound system load acceptable

✔ Multi-communication: RS232, USB, SNMP, RS485 (Optional)

✔ Robust design with glass fiber base (FR4) double side PCB

Specification

Accept Deeply Customized Products
Model	Maxwin 6K	Maxwin 6KL	Maxwin 10K	Maxwin 10KL
Capacity	6KVA/6KW		10KVA/10KW
AC INPUT
Wiring	L/N+PE
Rated Voltage	208/220/230/240Vac
Voltage Range	90~300VAC
AC OUTPUT
Voltage Regulation	±1%
Waveform	Pure Sine Wave
Power Factor	1.0
Overload Capability	10Min@105%~125%; 60Sec.@125%~150%; 0.5Sec.@>150%
EFFICIENCY
Line Mode	94% @240VDC, 92% @192VDC
ECO Mode	97%
BATTERY & CHARGER
Rated Voltage	192VDC (Internal)	192/240VDC (External)	192VDC (Internal)	192/240VDC (External)
Backup Time	>6mins @ Half Load	Depends on External	>6mins @ Half Load	Depends on External
PHYSICAL

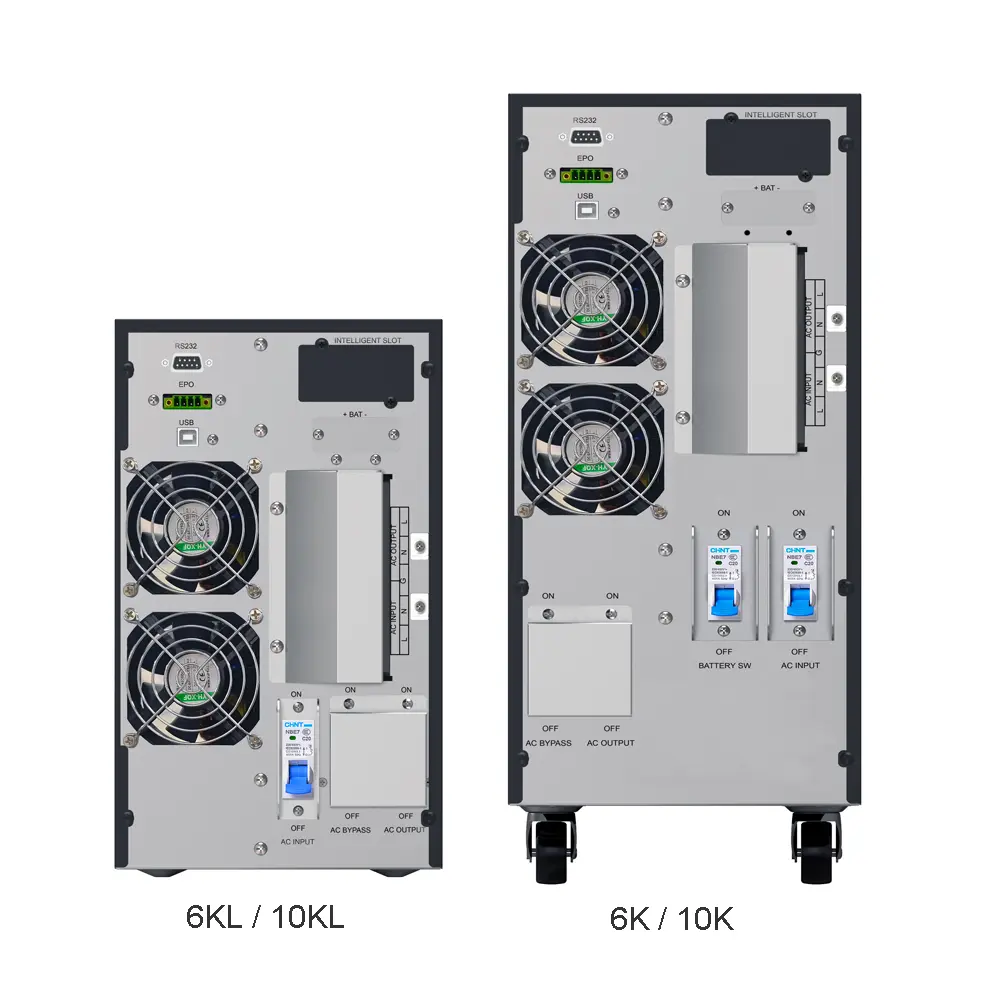

Dimension (WxDxH mm)	190x586x472	190x399x323	190x586x472	190x562x340
Net Weight (kg)	49.5	9.9	50.7	13.5

• Product specifications are subject to change without prior notice
• Ambient temperature > 30°C, output power factor is 0.9
• "L" denotes long backup time model (external battery)
