OEM 3-1Phase High-efficiency Online UPS 10-20KVA Suppliers, Factory

Model: Maxwin series 10-20KVA (3-1Phase)

3phase in and 1phase out Maxwin series of 10-20KVA uninterruptible power supply (UPS) with three-level inverter technology ensures stable, efficient power for critical systems. It offers enhanced safety, reduced energy loss, and is ideal for industries like healthcare, data centers, and IT networks, telecommunication systems, manufacturing, where reliable power is essential.

Send Inquiry

Product Description

Key Features

High-frequency online double conversion

DSP-controlled

Active PFC, input PF > 0.99

Battery-free startup

Wide input voltage: 90V-300V

Wide input frequency: 40-70Hz

Generator-compatible

Cold start capability

ECO mode & Auto-sensing 50Hz/60Hz

Supports laser printers & ultrasound systems (custom)

Robust design: FR4 PCB, optimized cooling

Specification

Deeply Customized Products Available
Model	Maxwin 31 10K/L	Maxwin 31 15K/L	Maxwin 31 20K/L	Options: Standard (Internal) / Long Backup (L)
Capacity	10KVA/10KW	15KVA/15KW	20KVA/20KW	Power Factor 1.0
Phase	Single phase input single phase output or 3 phases input single phase output
AC INPUT
Voltage Range	Line-Neutral 90~300VAC ; Line-Line 150~500VAC
Frequency Range	40Hz-70Hz
AC OUTPUT
Regulation	±1% (Voltage regulation)
Waveform	Pure sine wave
Overload	10Min@105%~125%; 60Sec.@125%~150%; 0.5Sec.@>150%
BATTERY & CHARGER
Battery Voltage	192VDC / 240VDC (Adjustable)
Charging Current	Standard: 2A/4A; Long backup: 4A/8A (Settable via LCD)
PHYSICAL
Dimension (mm)	190x662x482	300x698x700	300x698x700	WxDxH (Varies by model)

• Product specifications are subject to change without prior notice
• Ambient temperature > 30°C, output power factor is 0.9
• "L" denotes long backup time model (External Battery)

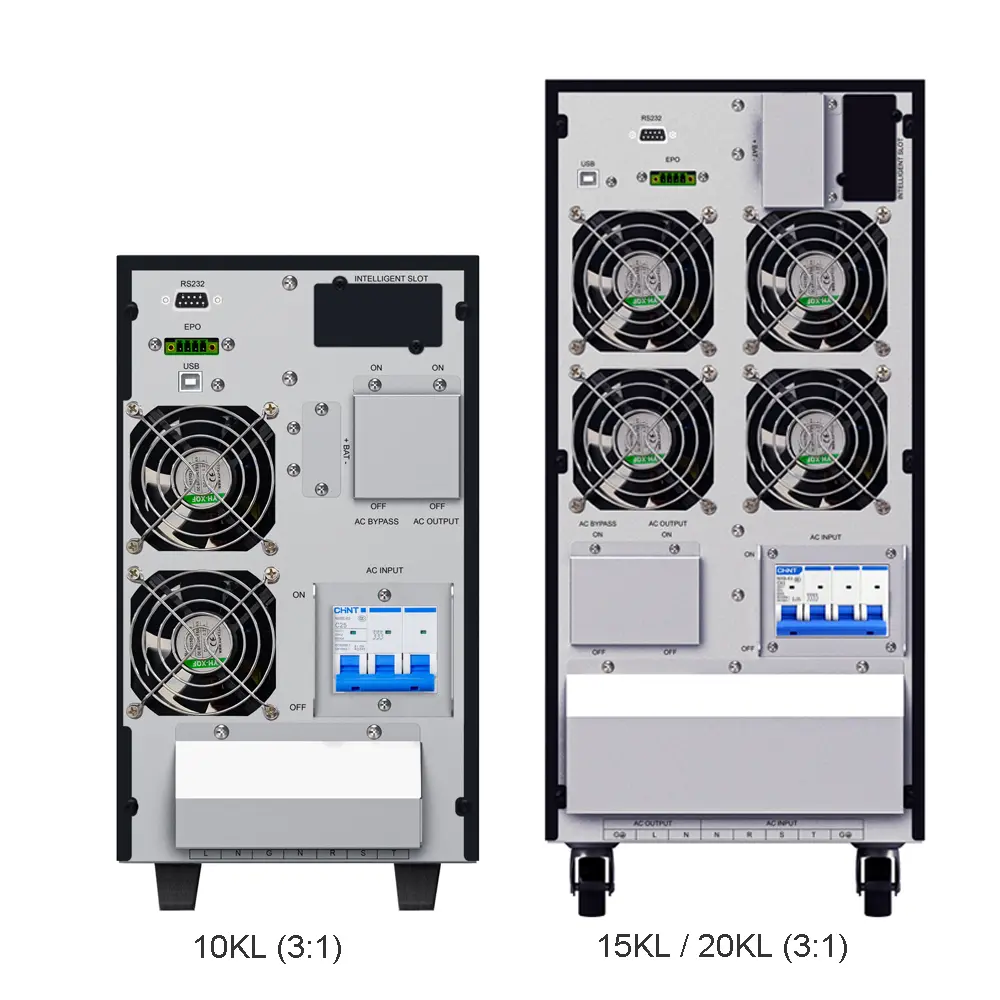

Production Images
