OEM Customized Ultrasound UPS Medical Online UPS Model Maxwin Pro 3KW Supplier, Factories

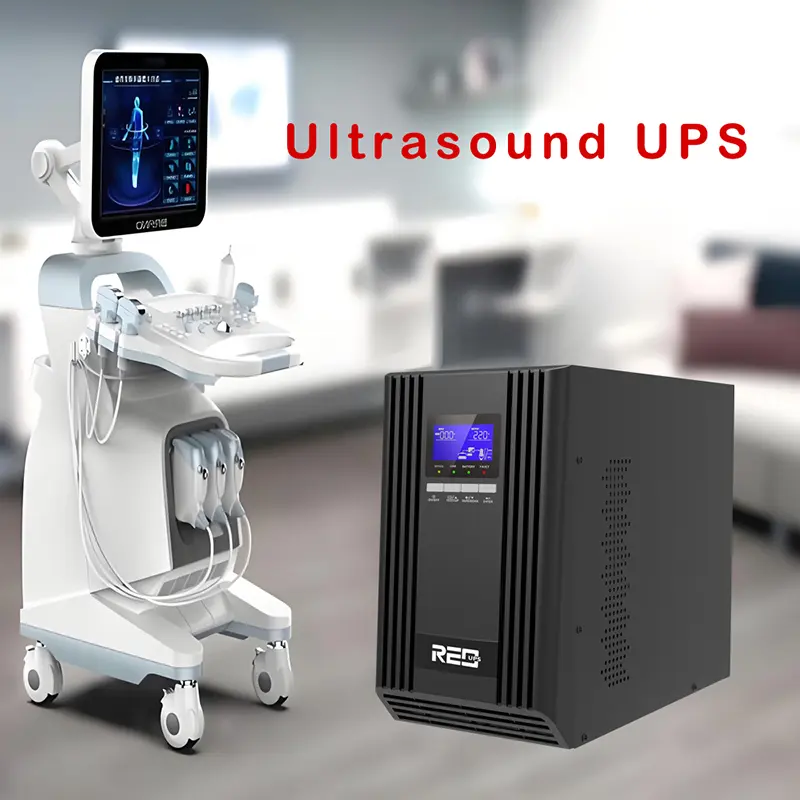

REO UPS manufacturer Maxwin Pro 3KW with 220V input and 220V output online double conversion UPS, high efficiency with output power factor 1.0 provides continuous power backup, protecting devices from outages, surges, and fluctuations. Ideal for critical medical equipment like ultrasound equipment, perfectly solve the interference and noise problem due to the normal UPS will caused the ultrasound equipment screen flashing or display not clear, and too noisy since the UPS put in the quiet consulting room.

Send Inquiry

Product Description

Key Features

✔ High-frequency online double conversion

✔ Output Power factory 1.0 with DSP-controlled

✔ Ultrasound imaging equipment specialized UPS

✔ Active PFC, input PF > 0.99

✔ Battery-free startup

✔ Wide input voltage: 90V-300V

✔ Wide input frequency: 40-70Hz

✔ Generator-compatible

✔ Cold start capability

✔ Optional Remote On/Off (ROO)

✔ ECO mode

✔ Auto-sensing 50Hz/60Hz

✔ Frequency conversion: 50Hz input / 60Hz output

✔ Supports laser printers & ultrasound systems

✔ RS232, USB/MODBUS/RS485/SNMP/AS400 options

✔ Robust design: FR4 PCB, optimized cooling

Specification

Accept Deeply Customized Products
Model	Maxwin Pro 3K
Capacity	3KVA/3KW
AC INPUT
Wiring	L/N+PE
Rated Voltage	208/220/230/240VAC
Voltage Range	90~300VAC
Frequency Range	40Hz~70Hz
Input Power Factor	≥0.99
AC OUTPUT
Wiring	L/N+PE
Output Voltage	208/220/230/240VAC
Voltage Regulation	±1%
Waveform	Pure sinewave
Power Factor	1.0
Overload Capability	1min@105%~125%; 30s@125%~150%; 0.5s@>150%
BATTERY & CHARGER
Rated Battery Voltage	72VDC
Battery Capacity	12V/7Ah x 6pcs Internal
Backup Time	>6mins @ Half Load
PHYSICAL PARAMETERS
Dimension WxDxH (mm)	190x380x323
Net Weight (kg)	20.8
