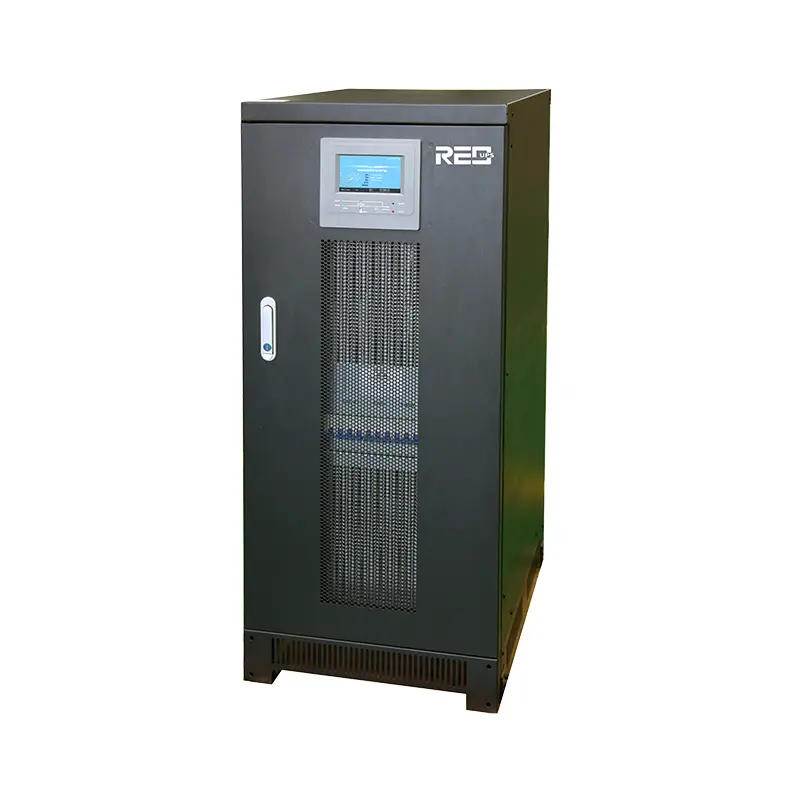

ODM Data Center Transformer based Low Frequency Online UPS 10~120KVA Manufacturers, Supplier

Model: GF33 series 160~600KVA (3-3Phase, transformer based)

Low frequency online UPS built-in transformer GF33 series is a high end technology 3 Phase Input/ Output transformer based UPS system. It is designed for many different applications and compatible loads, such as Data center, Telecom, Network management center, Financial center, Security trading settlement center, Banking, Large theater, Stadium, Traffic administration bureau, Road and railroad tunnel lighting control and monitoring center, Port information center. Semiconductor production line, automatic production line and related devices.

Send Inquiry

Product Description

Key Features

✓Online double-conversion UPS
✓Advanced rectifier and IGBT technology
✓Full DSP control guarantees high reliability
✓Overall efficiency up to 90%
✓ECO mode efficiency up to 98%
✓Flexible battery configuration
✓Intelligent fault diagnosis system
✓Wide input voltage range and frequency range
✓Flexible single or dual utility power input
✓100% 3 phase unbalanced allowed
✓Front maintenance design
✓Parallel up to 8 units and can use same battery group
✓Generator compatible
✓Output isolated transformer Built-in for reduced interference

Technical Specifications

Model	GF3310	GF3315	GF3320	GF3330	GF3340	GF3360	GF3380	GF33100	GF33120
Capacity	10KVA/9KW	15KVA/13.5KW	20KVA/18KW	30KVA/27KW	40KVA/36KW	60KVA/54KW	80KVA/72KW	100KVA/90KW	120KVA/108KW
HOST MACHINE
Overall Efficiency	Up to 90% (AC-AC)
Noise (at 2 meters)	< 50-60dB
Display	LCD: Multi-Language, Status, ECO Mode, INV Temp, History Logs, Battery Test. LED: UPS States Indicator
INPUT
Input Voltage	380Vac+N+W (3 phase + PE)
Voltage Range	285-475Vac
Frequency Range	45-65 Hz
Input Current	23A	31A	39A	54A	70A	100A	125A	160A	192A
OUTPUT
Voltage Regulation	380Vac ±1% (Static Load)
Overload Capability	>125%: 10 mins; >150%: 60s transfer to bypass
PHYSICAL
Dimension (WxDxH mm)	475 x 700 x 990			550 x 800 x 1200		605 x 800 x 1350		800 x 850 x 1900
Net Weight (Kg)	210	223	230	280	330	450	550	630	750

*Product specifications are subject to change without prior notice.

Production & Shipment

Production Unit 01

Production Unit 02

Production Unit 03

Production Unit 04

Production Unit 05

Production Unit 06

Professional Packaging

FAQ

What is Online double-conversion UPS technology? +

Online double-conversion technology provides the highest level of power protection by isolating the output power from all input anomalies. It continuously converts AC to DC and then back to AC, ensuring a pure sine wave output.

Do you offer extended warranty options? +

Yes, extended warranty options are available upon request to ensure long-term reliability and peace of mind for your critical power infrastructure.

How do I calculate the required UPS capacity for my equipment? +

You can calculate the required capacity by summing the power consumption (Watts or VA) of all connected devices and adding a safety margin, typically 20-30%, for future expansion.

Is this UPS compatible with generators? +

Yes, our UPS systems are fully generator compatible. The wide input voltage and frequency range allow the UPS to stabilize the often fluctuating power provided by generators.

What are the benefits of the built-in output isolation transformer? +

The built-in isolation transformer reduces interferences from load harmonic wave currents and N-wire voltage, providing superior protection for sensitive electronic equipment.

Can multiple units be used in parallel? +

Yes, this model supports paralleling up to 8 units. They can also share the same battery group to optimize space and costs while increasing system redundancy.
